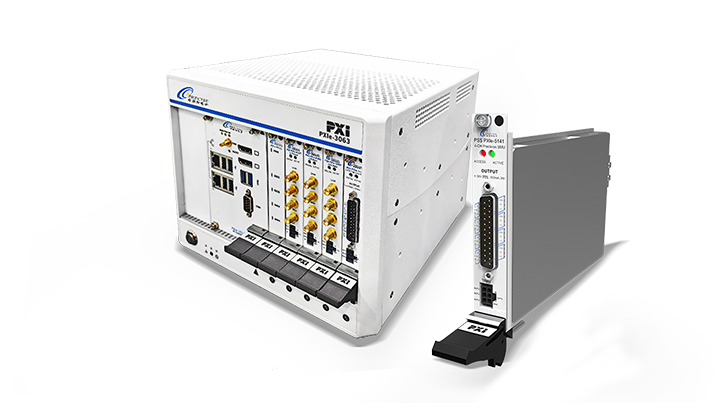

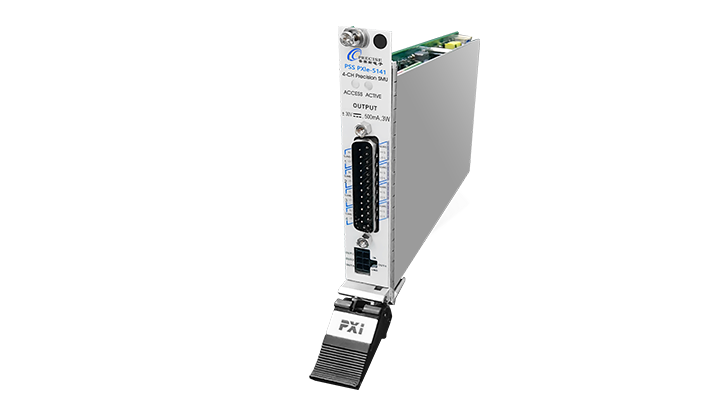

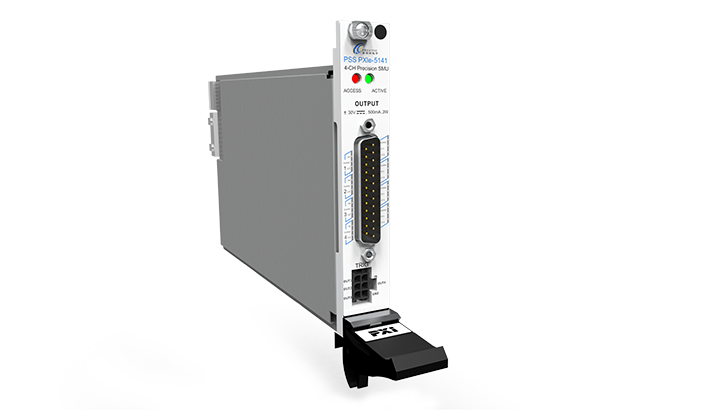

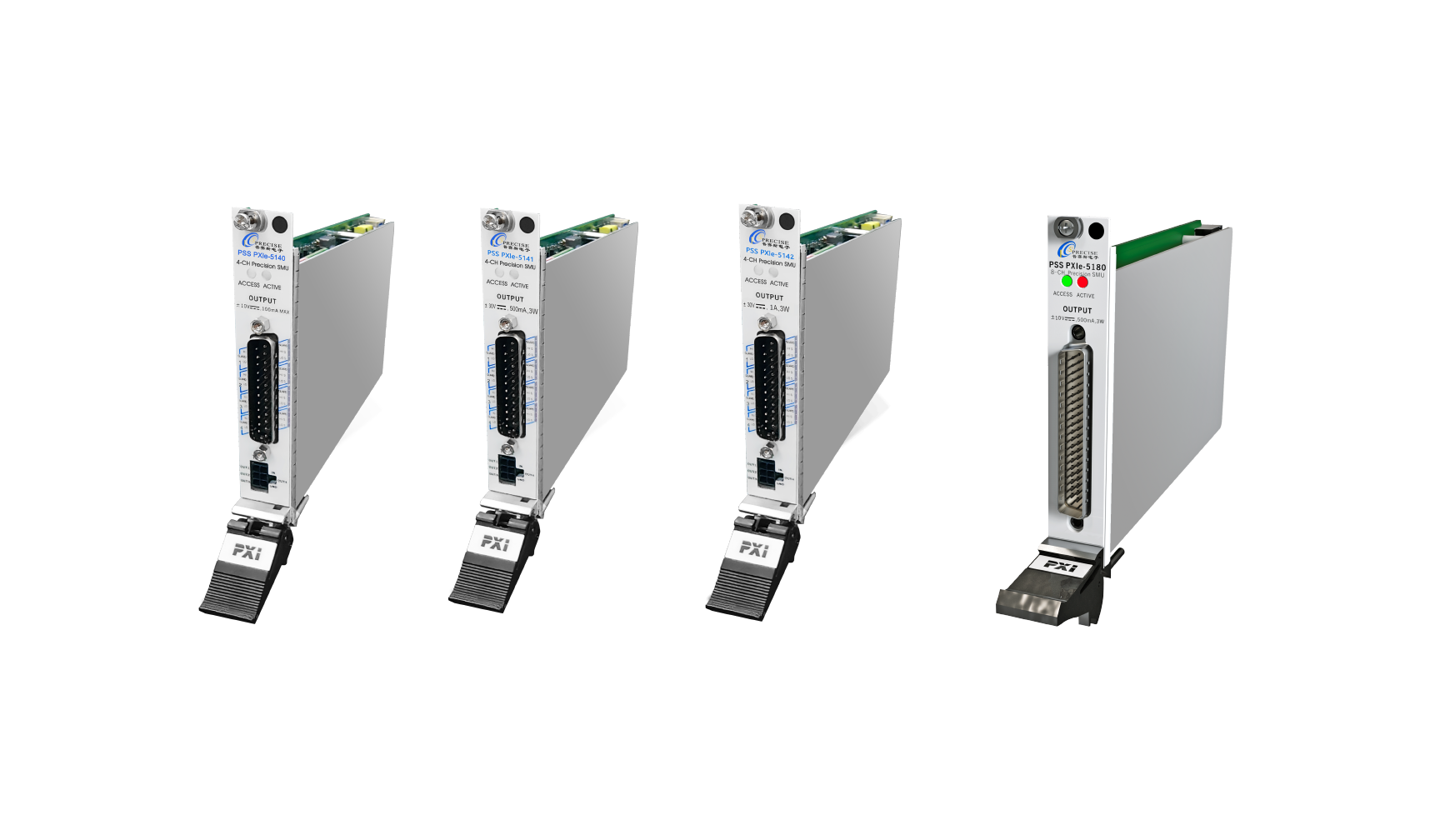

PSS PXIe-514X Series Source Measure Unit

n   Four completely independent source measure channels, supporting parallel testing

n   Support max ±10V±100mA/±30V±500mA output

n   Max 3W output/absorption power for one single channel, and max 12W for four channels

n   Max current and voltage resolution as low as 10pA/100μV

n   Support pulse output, pulse width as low as 100μs, and duty cycle adjustable from 0 to 100%

n   Support max 1MS/s sampling rate, applicable for high-speed signal acquisition and dynamic testing

n   Support 0.001~100 NPLC integration time setting, also considering high-speed and high-precision measurement

n   Support several working modes such as continuous, sweep and sequence

n   Support 4-channel external synchronous trigger, polarity and duty cycle adjustable

n   Support 2-wire and 4-wire measurement, with Guard output protection

n   Support standard SCPI instruction set, provide complete driver and sample code

n   Support up to ±30V±1A(pulse)/±10±500mA DC/pulse output

Product Application

n   Semiconductor wafer and chip characteristics test

n   LD laser characteristics test

n   Solar cell charging and discharging, life test

n   Sensor and material testing
